Graphics Processing Radeon™ RX 6800
Core Clock Boost Clock* : up to 2155 MHz (Reference card: 2105 MHz)
Game Clock* : up to 1925 MHz (Reference card: 1815 MHz)
Stream Processors 3840
Process Technology 7 nm
Memory Clock 16000 MHz
Memory Size 16 GB
Memory Type GDDR6
Memory Bus 256 bit
Memory Bandwidth (GB/sec) 512 GB/s
Card Bus PCI-E 4.0 x 16
Digital max resolution 7680×4320
Multi-view 4
Card size L=286 W=112 H=58 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 650W
Power Connectors 8 pin*2

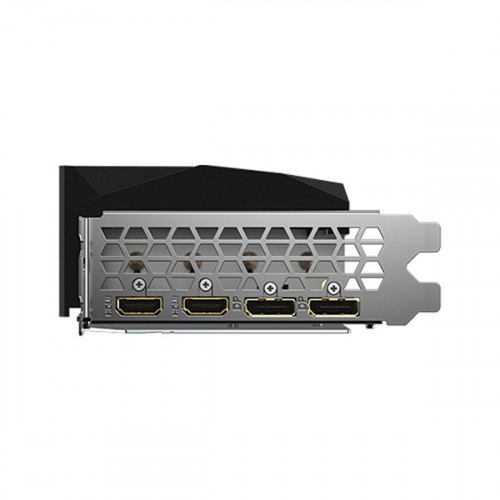

Output DisplayPort 1.4a *2
HDMI 2.1 *2
Note * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
