Specification




USW‑Pro‑48‑PoE


Dimensions
442.4 x 399.6 x 43.7 mm
(17.42 x 15.73 x 1.72″)


Weight
With Brackets
6.25 kg (13.78 lb)
6.34 kg (13.98 lb)


Interfaces
NetworkingManagement

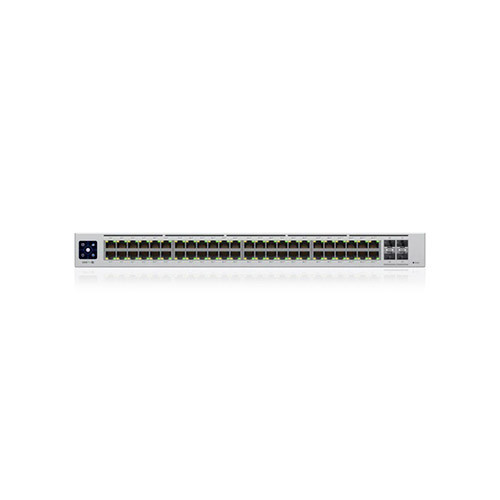

(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports



Ethernet In‑Band

Total Non‑Blocking
Throughput
88 Gbps


Switching Capacity
176 Gbps


Forwarding Rate
130.944 Mpps


Power Method
Universal Input

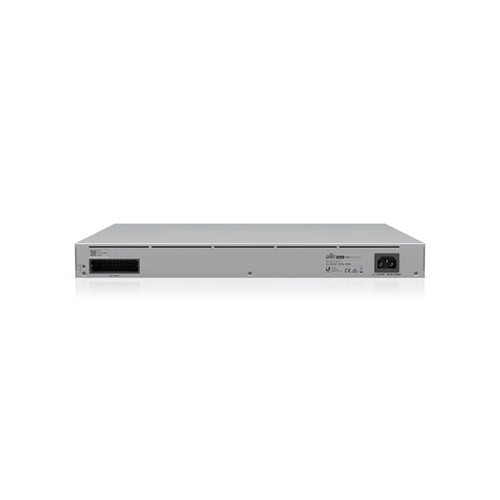

USP RPS DC Input
100-240VAC, 50/60Hz
52VDC, 11.54A; 11.5VDC, 5.22A


Power Supply
AC/DC, Internal, 660W


Voltage Range
100 to 240VAC


Max Power Consumption
(Excluding PoE Output)
60W


LEDs
System
RJ45 Data Ports
SFP+ Data ports




Status
POE; Speed/Link/Activity
Link/Activity

ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV


Shock and Vibration
ETSI300‑019‑1.4 Standard


Operating Temperature
‑5 to 40° C (23 to 104° F)


Operating Humidity
10 ‑ 90% Noncondensing


Certifications
CE, FCC, IC






PoE


Total Available PoE
600W


PoE Interfaces
Ports 1‑40Ports 41‑48



802.3af/at
802.3bt





PoE+ IEEE 802.3af/at
(Pins 1, 2+; 3, 6‑)
60W PoE++ IEEE 802.3af/at/bt
(Pins 1, 2+; 3, 6‑)
(Pair A 1, 2+; 3, 6‑) (Pair B 4 , 5+; 7, 8‑)

Max. PoE Wattage per
Port by PSE
802.3at
802.3bt
32W
64W


Voltage Range
802.3af Mode
802.3at/bt Mode
44‑57V
50‑57V
