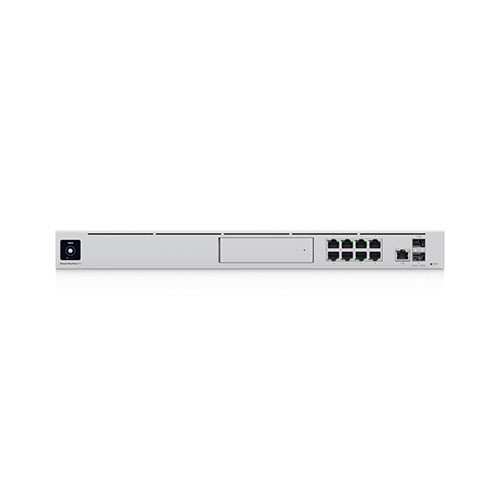

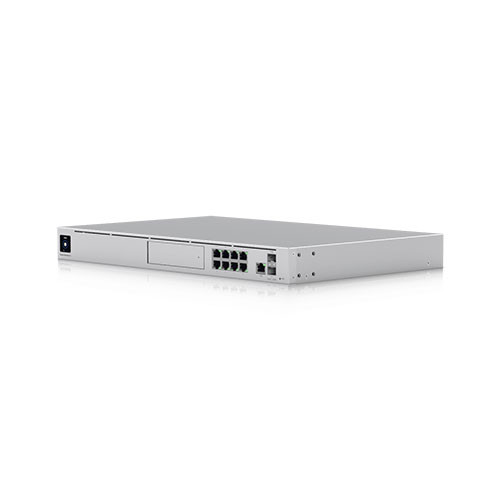

Ubiquiti (UDM-Pro) Dream Machine Pro Cloud Gateway
Sold by
Viewnet Computers
- 10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.
Specification
Overview Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) UniFi Application Suite Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ Managed UniFi Devices 100+ Managed Cameras (24) HD
(14) 2K
(8) 4K
Simultaneous Users Connected 1,000+ Max. WAN Port Count 8 Default WAN Ports (1) 10G SFP+ (1) GbE RJ45 Port Layout 1 GbE RJ45 9 (1G/100M/10M) 10G SFP+ 2
(10G/1G)
IDS/IPS Throughput 3.5 Gbps Form Factor Rack mount (1U) Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup Security Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ VPN & SD-WAN License-Free SD-WAN Site-to-Site VPN Site Magic – ✓
IPsec – ✓
OpenVPN – ✓
VPN Server Identity Endpoint One-Click VPN – ✓
Teleport Zero-Configuration VPN – ✓
WireGuard – ✓
OpenVPN – ✓
L2TP – ✓
VPN Client OpenVPN – ✓
WireGuard – ✓
Networking Multi-WAN Load Balancing ✓ Shadow Mode (VRRP) High Availability ✓ Dynamic Routing OSPF – ✓
BGP – ✓
Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size 4,000
Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ Hardware NVR Storage (1) 3.5″ NVR HDD bay Max. Power Consumption 33W Power Method (1) Universal AC input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input Power Supply AC/DC, internal, 50W Supported Voltage Range 100—240V AC Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz System Memory 4 GB On-board Storage 16 GB Weight 3.9 kg (8.6 lb) Enclosure Material Aluminium CNC, SGCC steel Mount Material SGCC steel LCM Display 1.3″ touchscreen Management Ethernet Bluetooth LEDs
Ethernet – ✓
SFP+ – ✓
RPS – ✓
PSU – ✓
HDD – ✓
Button (1) Factory-reset ESD/EMP Protection Air: ± 15kV, contact: ± 8kV Ambient Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC
Shipping Information
- Weight
- 3.90 kg
