Specification

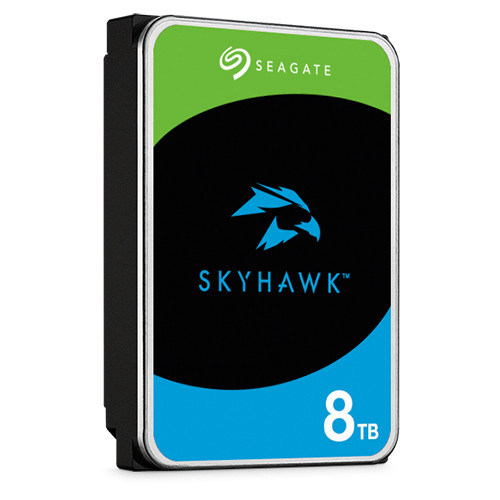

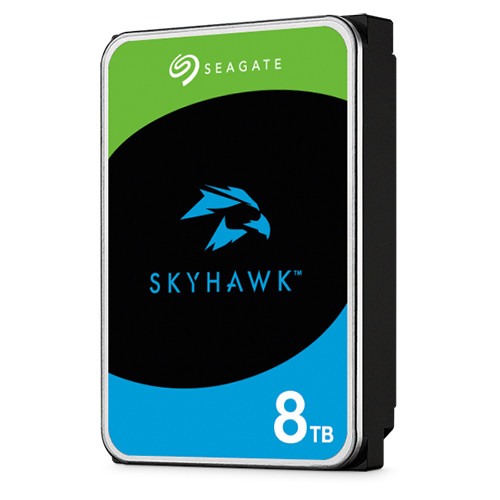

Standard Model Numbers1 ST8000VX010 SkyHawk™ Health Management Included Yes Interface SATA 6Gb/s

Features and Performance Drive Bays Supported Up to 16 Cameras Supported Up to 64 Max. Sustained Transfer Rate OD (MB/s) 210MB/s Cache (MB) 256

Reliability/Data Integrity Tarnish Resistant Yes Load/Unload Cycles 300,000 Nonrecoverable Read Errors per Bits Read, Max 1 per 10E15 Power-On Hours per Year (24×7) 8760 Workload Rate Limit (WRL)2 180 MTBF 1,000,000hr

Power Management Startup Current, Typical (12V, A) 1.8 Average Operating Power (W) 8.73W Idle Average (W) 7.06W Standby Mode/Sleep Mode, Typical (W) 0.96/0.96 Voltage Tolerance (5V) +10/-5% Voltage Tolerance (12V) ±10%     Environmental/Temperature Operating (ambient, min °C) 5 Operating (drive case, max °C)4 70 Nonoperating (ambient, min °C) -40

Physical Height (mm/in, max) 26.11mm/1.028in Width (mm/in, max) 101.85mm/4.01in Depth (mm/in, max) 146.99mm/5.787in Weight (g/lb) 716g/1.579lb
