Specification

Diagonal Viewing Size 23.8″

Preset Display Area (H x V)

527.04 mm x 296.46 mm (20.75″ x 11.67″)

Area: 156,246.28 mm2 (242.18 inches2)

Panel Type

In-Plane Switching (IPS) technology

  Display Screen Coating

Anti-glare with 3H hardness

  Maximum Preset Resolution

1920 x 1080

  Refresh rate

100 Hz

  Viewing Angle

178° vertical / 178° horizontal

  Pixel Pitch

0.2745 mm x 0.2745 mm

  Pixel Per Inch (PPI)

92.53

  Contrast Ratio

1,500: 1 (typical)

  Aspect Ratio

16:9

  Backlight Technology

LED edgelight system

  Brightness

250 cd/m2 (typical)

  Response Time

5ms gray-to-gray (Fast mode)
8ms gray-to-gray (Normal mode)

  Color Support

Up to 16.7 million colors

  Color Gamut

99% sRGB

  TÜV Eye Comfort

Yes, 4-Star

  Ficker Free

Yes

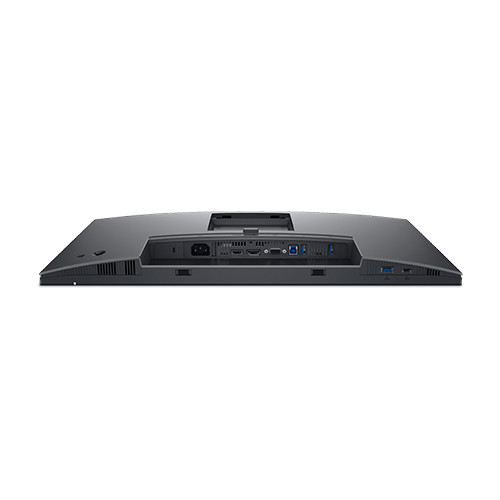

  Connectivity

• 1x HDMI 1.4 (HDCP 1.4) (Supports up to FHD 1920 x 1080 100Hz TMDS as per specified in HDMI 1.4)


• 1x DP 1.2 (HDCP 1.4)


• 1x VGA


• 1x USB 3.2 Gen1 Type-B upstream


• 3x USB 3.2 Gen1 Type-A downstream


• 1x USB 3.2 Gen1 Type-C downstream with up to 15W PD (data only)

Built-in Speaker

No

  USB Power Delivery

Yes, up to 15W via USB-C downstream port

  Adjustability

Height, Tilt, Swivel, Pivot

  Height

Up to 150 mm (5.9″)

  Tilt

-5°/+21°

  Swivel

-45°/+45°

  Pivot

-90°/+90°

  Dell Display Manager Compatibility

Yes with Easy Arrange

  Remote Asset Management

Yes

  Voltage Required

100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.5 A (typ)

  Power Consumption (Operational) (typical)

0.3 W (Off mode)
0.3 W (Standby mode)
11.7 W (On mode)
65 W (Max)
12.0 W (Pon)
38.4 kWh (TEC)

  Audio Output

Optional soundbar (sold separately)

  Security

Security-lock slot (based on Kensington Security Slot™)

  Compliant Standards

ENERGY STAR certified monitor
EPEAT GOLD
EPEAT Climate+
TCO Certified Displays
TCO Certified Edge
RoHS-compliant
BFR / PVC free monitor (excluding external cables)
Arsenic-free glass and mercury-free (panel only)

  Flat Panel Mount Interface

VESA (100 mm x 100mm)

  Temperature Range

Operating: 0°C ~ 40°C (32°F ~ 104°F)
Non-operating: -20° ~ 60°C (-4° ~ 140°F)

  Humidity Range

Operating: 10% ~ 80% (non-condensing)
Non-operating: 5% ~ 90% (non-condensing)

  Altitude

Operating: 5,000 m (16,404 ft) max
Non-operating: 12,192 m (40,000 ft) max

  What’s Included

• 1x Monitor panel


• 1x Stand riser and base


• 1x Quick setup guide


• 1x Safety, Environmental, and Regulatory Information

Cables Included

• 1x Power cord


• 1x DP-to-DP cable, 1.8m


• 1x USB 3.2 Gen1 Type A-to-B (upstream) cable, 1.8m

Height with stand (Compressed ~ Extended) 14.33″ ~ 19.55″   Width with stand

21.21″

  Depth with stand

7.16″

  Height without stand

12.37″

  Width without stand

21.21″

  Depth without stand

1.97″

  Weight (panel only – for VESA mount)

6.88 lbs

  Weight (with packaging)

14.95 lbs
