The MYSTIQUE series is DeepCool’s new line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8″ TFT LCD screen! The pump has also been upgraded and optimized to provide better cooling than ever before.



Intel – LGA1700/1200/1151/1150/1155
AMD – AM5/AM4

Specification

Net Weight
1543 g

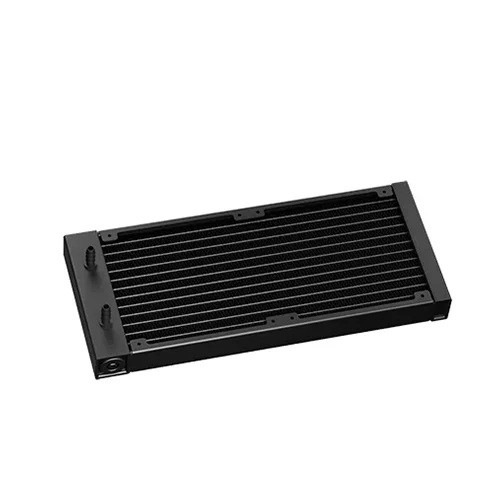

Radiator Dimensions
282×120×27 mm(L×W×H)


Radiator Material
Aluminum


Tube length
410 mm

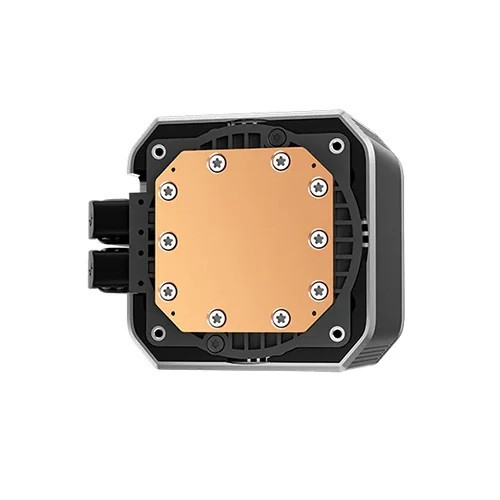

Pump Dimensions
93×77×66 mm(L×W×H)


Pump Speed
3400 RPM±10%


Pump Connector
3-pin


Pump Rated Voltage
12 VDC


Pump Rated Current
0.35 A


Pump Power Consumption
4.2 W

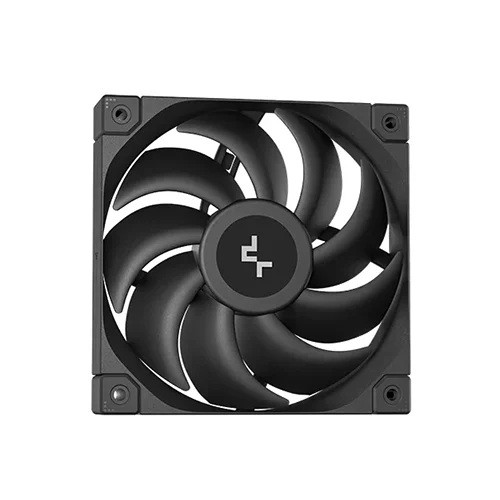

Fan Dimensions
120×120×25 mm(L×W×H)


Fan Speed
500~2150 RPM±10%


Fan Airflow
72.45 CFM


Fan Air Pressure
4.32 mmAq






Fan Noise
≤36.49 dB(A)


Fan Connector
4-pin PWM


Bearing Type
Fluid Dynamic Bearing


Fan Rated Voltage
12 VDC


Fan Rated Current
0.3 A


Fan Power Consumption
3.6 W


LED Type
Addressable RGB LED


LED Connector
3-pin(+5V-D-G)


LED Rated Voltage
5 VDC


LED Power Consumption
2.45 W（PUMP）


Display Specifications
2.83 inch 480×640 TFT LCD


EAN
6933412728771


P/N
R-LX550-BKDSNC-G-1
