Specification

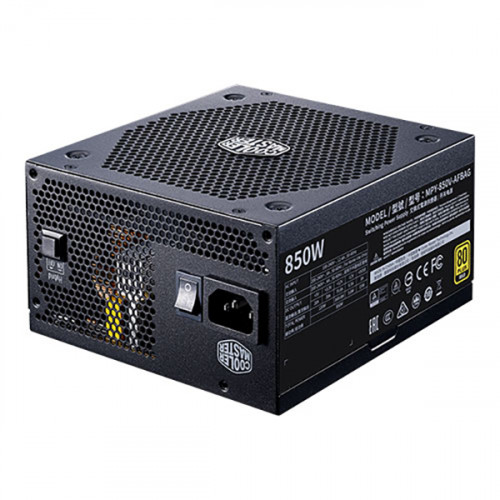

Model MPY-850V-AFBAG
ATX Version ATX 12V V2.52
PFC Active PFC
Input Voltage 100-240V
Input Current 13-6A
Input Frequency 50-60Hz
Dimensions (L x W x H) 160 x 150 x 86 mm
Fan Size 135mm
Fan Bearing FDB
Fan Speed 1545 RPM
Noise Level @ 20% 0 dBA
Noise Level @ 50% 15.4 dBA
Noise Level @ 100% 32.5 dBA
Efficiency 90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 – 500 ms
Hold Up Time 17ms
MTBF >100,000 Hours
Protections OVP, OPP, SCP, OCP, UVP, OTP
Regulatory CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

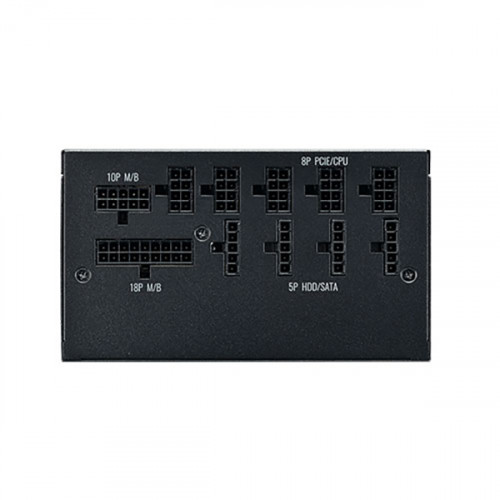

ATX 24-Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 12
Peripheral 4-Pin Connectors 4
PCI-e 6+2 Pin Connectors 6
Series V Gold Series
80 Plus Gold
Modular Full Modular
Wattage Above 750W
