SPECIFICATION
________________________________________
Ethernet Ports
• 3*10/100Mbps LAN Ports
1*RJ11 Port
Button
• WPS/Reset Button
External Power Supply
• 9V/0.6A
Dimensions (W X D X H)
• 114 x 94 x 26 mm
Antenna Type
• 2× External Antennas

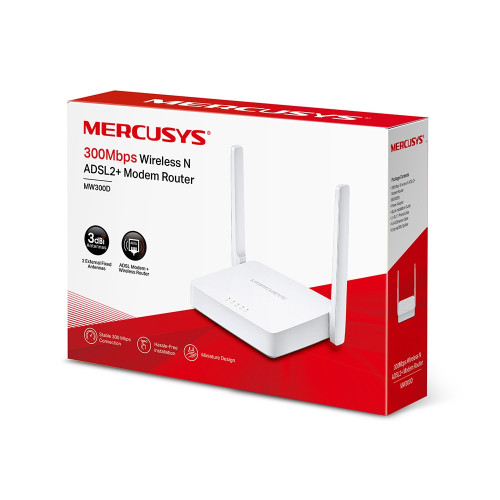

Package Contents
• • 300Mbps Wireless N ADSL2+
• Modem Router (MW300D)
• • Power Adapter
• • Quick Installation Guide
• • 2× RJ11 Phone Cable
• • RJ45 Ethernet Cable
• • External DSL Splitter
Wireless Standards
• IEEE 802.11b/g/n
Frequency
• 2.4 - 2.4835GHz
Signal Rate
• • 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
Transmission Power
• <20dBm (EIRP)
Reception Sensitivity
• • 270M: -73dBm@10% PER • 11M: -90dBm@10% PER
• 130M: -75dBm@10% PER • 6 M: -94dBm@10% PER
• 54M: -77dBm@10% PER • 1 M: -96dBm@10% PER
Wireless Functions
• Enable/Disable Wireless Radio
Wireless Security
• WPA-PSK / WPA2-PSK
DHCP
• Server
